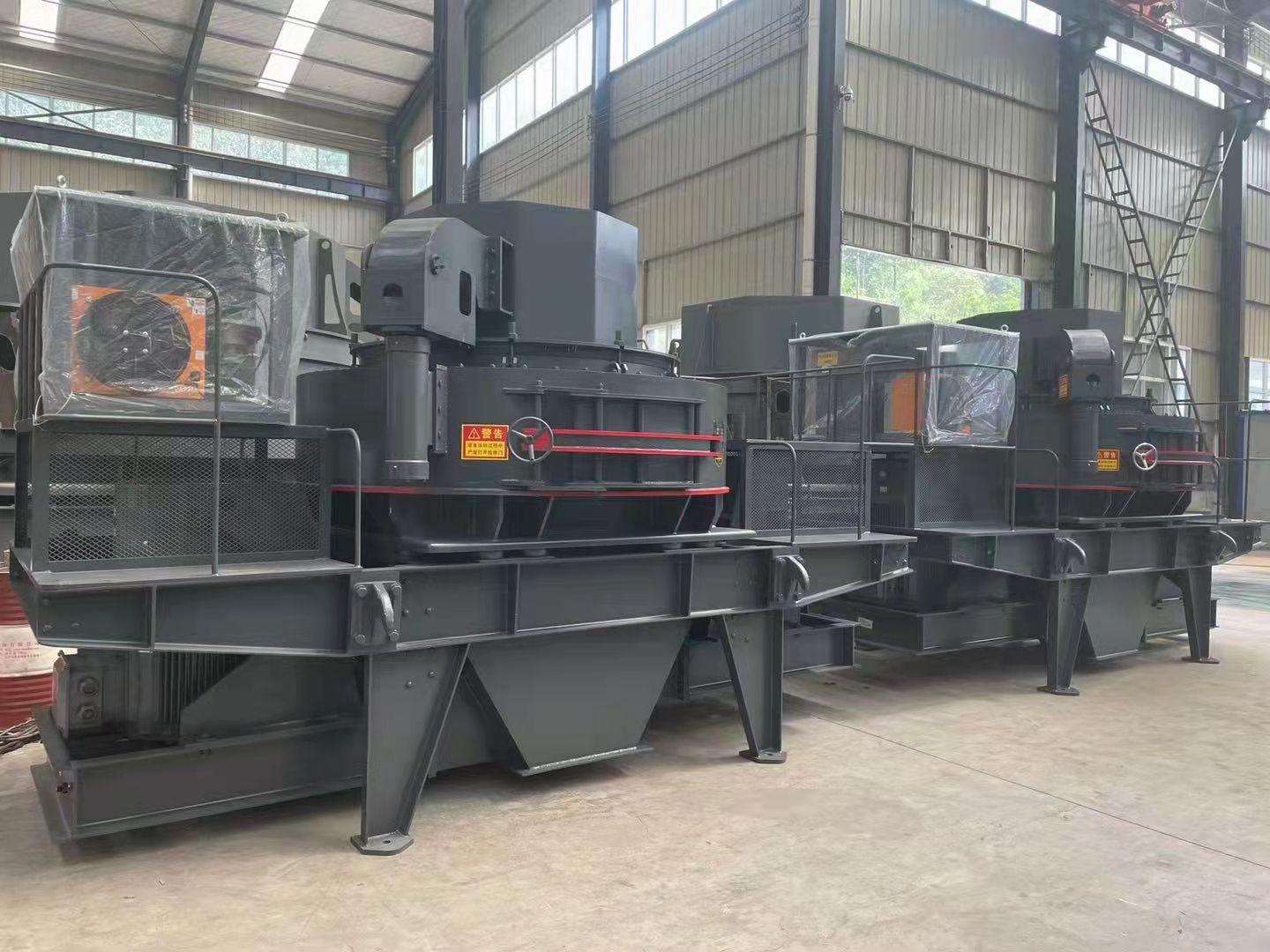

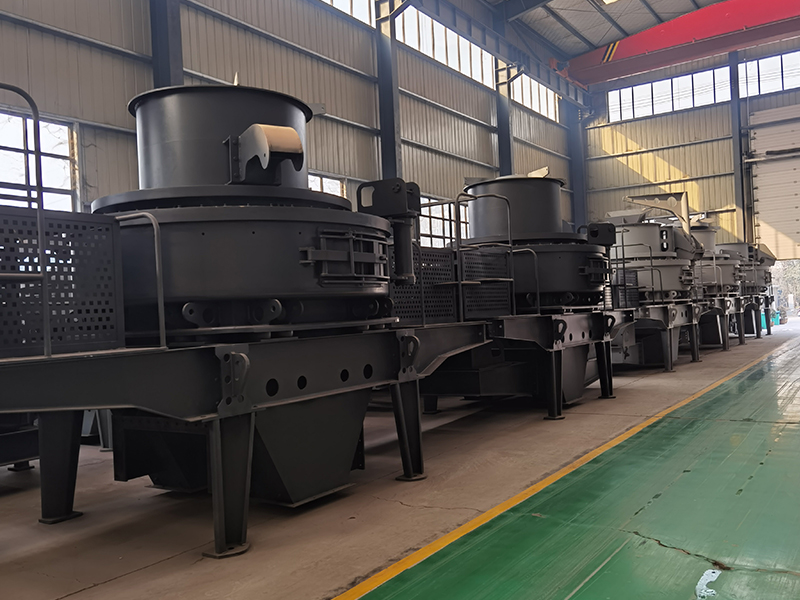

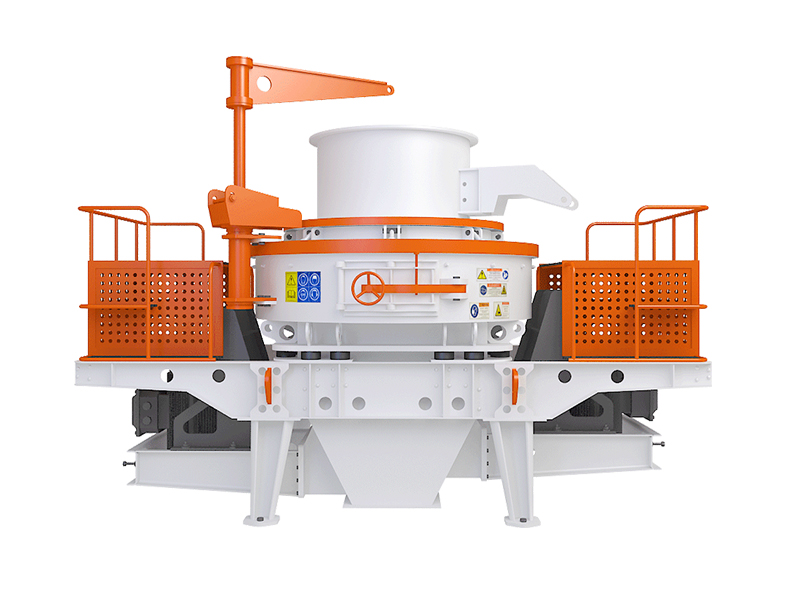

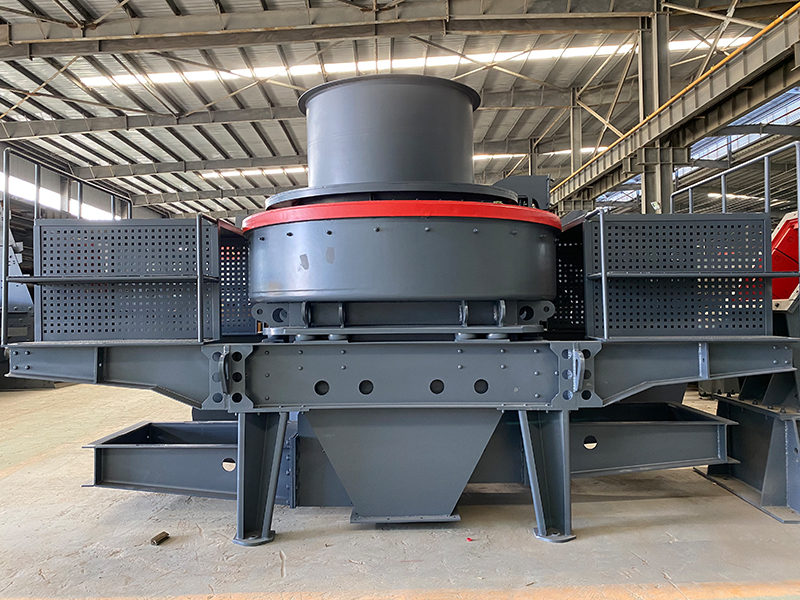

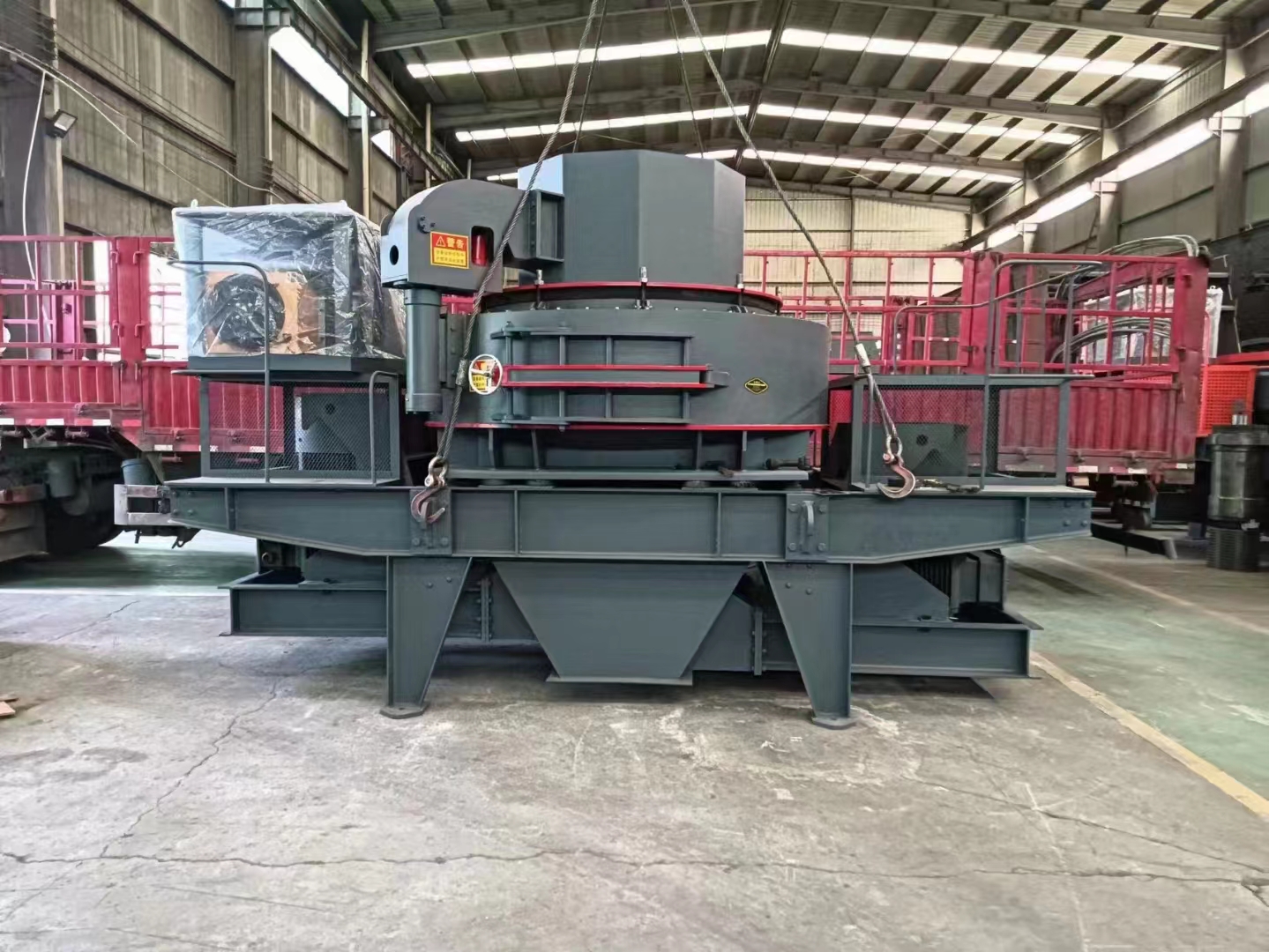

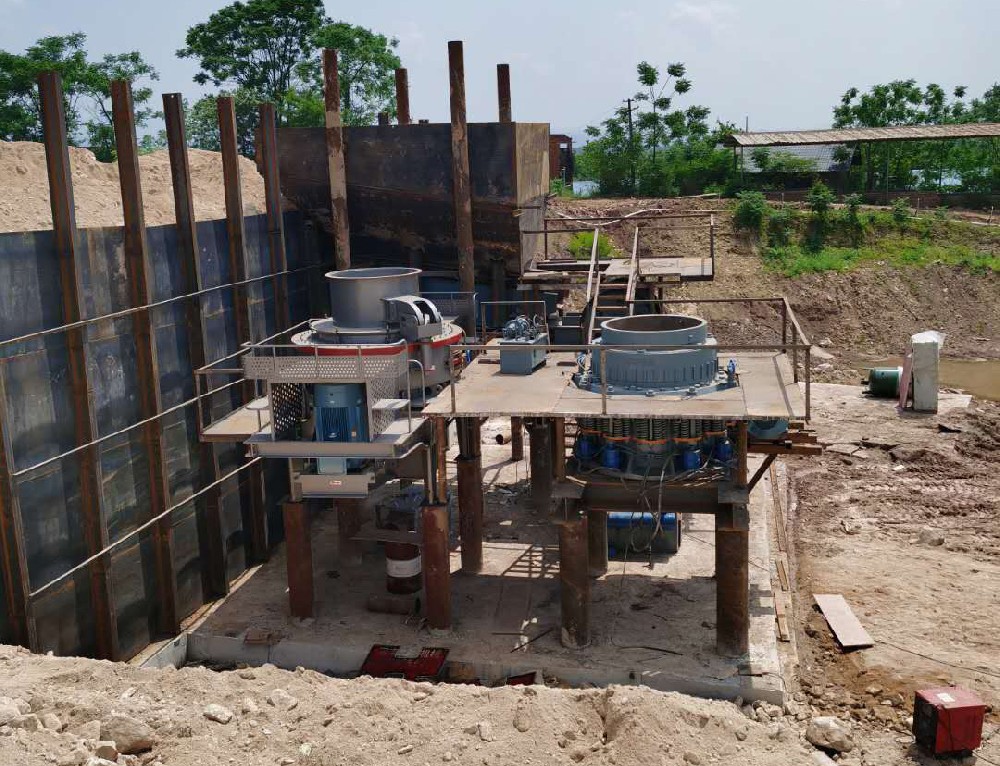

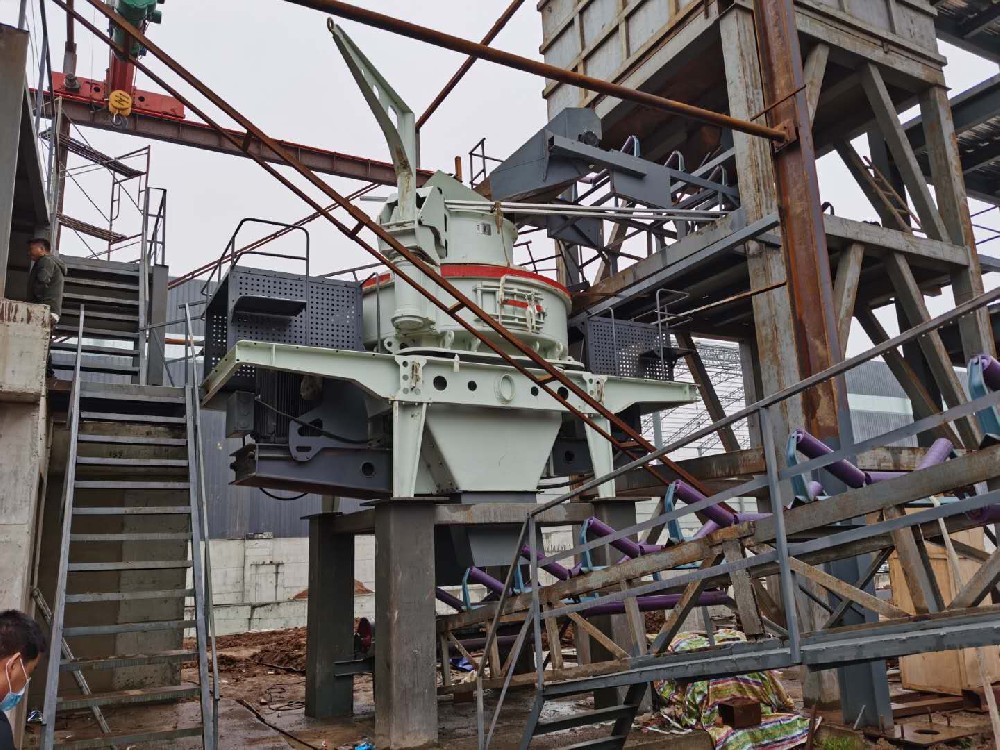

The VSI High-Efficiency Vertical Shaft Impact Crusher is a product developed by our company based on the practical needs of domestic sand production, with multiple technical improvements. It is designed for medium and fine crushing of various hard and brittle materials such as concrete aggregates. Its unique rotor structure design (suitable for both hard rock shaping and sand making), wear-resistant material technology, optimized crushing speed, and hydraulic design meet the needs of modern sand and gravel production. It is especially suitable for providing high-quality sand and gravel aggregates for high-rise buildings, highways (railways), municipal projects, large water conservancy facilities, concrete mixing stations, and many other fields. It is one of the preferred equipment for artificial sand making and stone shaping
Advantages and Features
Versatile and Superior Particle Shape:The specialized rotor design for sand making and shaping allows for easy conversion. Removing the surrounding protective plates can be used for hard rock shaping, producing cubic-shaped products and greatly reducing flakiness; with the surrounding protective plates installed, it is suitable for hard rock sand making, providing well-graded sand with adjustable fineness modulus.

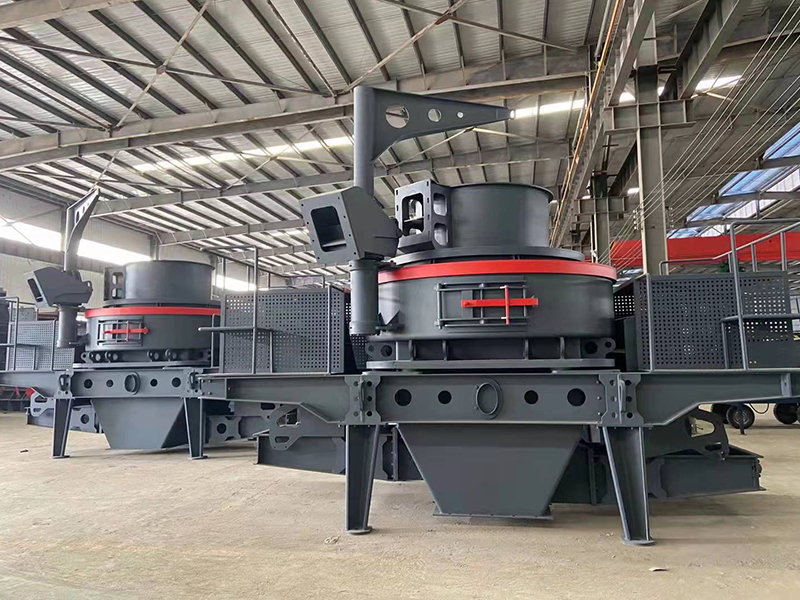

Advanced Hydraulic Cover Opening and Lifting Device:Facilitates daily inspection, maintenance, and repair of the equipment, significantly extending operational time.
High Production Efficiency and Long Service Life: The rational design of the material impact angle in the crushing chamber reduces energy consumption and operating costs while increasing production by 30%. The thin oil lubrication station with dual oil pumps provides complementary oil supply. The equipment automatically shuts down in the absence of oil flow or pressure, and the oil cooling and heating device ensures continuous optimal lubrication of the bearings, extending maintenance cycles and service life. Adjustable surrounding protective plates enhance material utilization and increase the service life by over 30%. The diamond-shaped impact blocks and additional secondary hammer heads minimize wear on the impact plates.
Working Principle

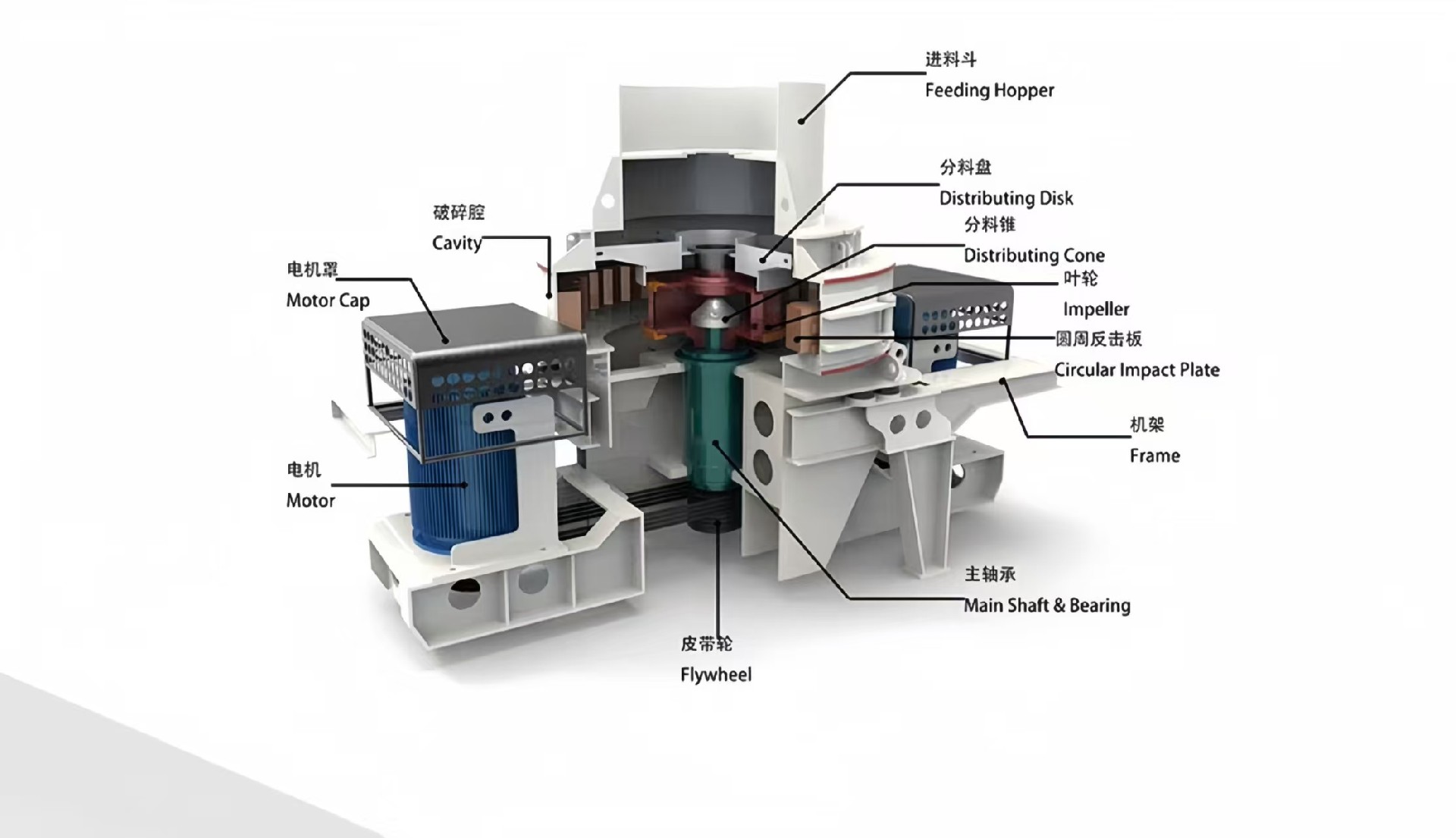

The sand-making machine is composed of seven parts: a feeding hopper, a distributor, a vortex crushing chamber, an impeller body, a main shaft assembly, a base, a transmission device, and a motor.
The material falls vertically into the high-speed rotating impeller from the upper part of the machine. Under the action of high-speed centrifugal force, it will collide with another part of the material shunted around the impeller in the form of an umbrella. The material forms a vortex between the casings, collides and rubs each other many times, is crushed, and is directly discharged from the lower part to form a closed circuit for multiple cycles. After being controlled by the screening equipment, the finished product reaches the required particle size.
Technical Parameters
Model
Capacity(t/h)
Max feeding size
Speed(r/min)
Double motor power (KW)
Overall Dimension (mm)
Weight (t)
Side and acentral feeding
Fully central feeding
Soft material(mm
Hard material(mm)
VSI7611
120‑180
60‑90
35
30
1700‑1890
110
4100×2250×2314
11.8
VSI8518
200‑260
100‑130
40
35
1520‑1690
180
4160×2350×2476
14.5
VSI9526
300‑380
150‑190
45
40
1360‑1510
264
4540×2470×2911
17.8
VSI1140
450‑520
225‑260
50
45
1180‑1310
400
5034×2760×3170
20
VSI1145
500‑640
250‑360
50
45
1200‑1390
440
5450×2850×3335
21.5
VSI1250
320‑490
260‑350
50
45
1040‑1220
560
5530×2830×3820
23
VSI1263
545‑583
454‑486
50
60
900‑1200
630
5750×2980×3410
24.5
Any change of technical data will not be advised separately.
