The mobile sand making machine is an efficient, flexible, environmentally friendly and intelligent sand making equipment suitable for various construction projects and operating scenarios. Its emergence has greatly improved the efficiency and quality of sand making operations and provided strong support for the development of the construction industry.

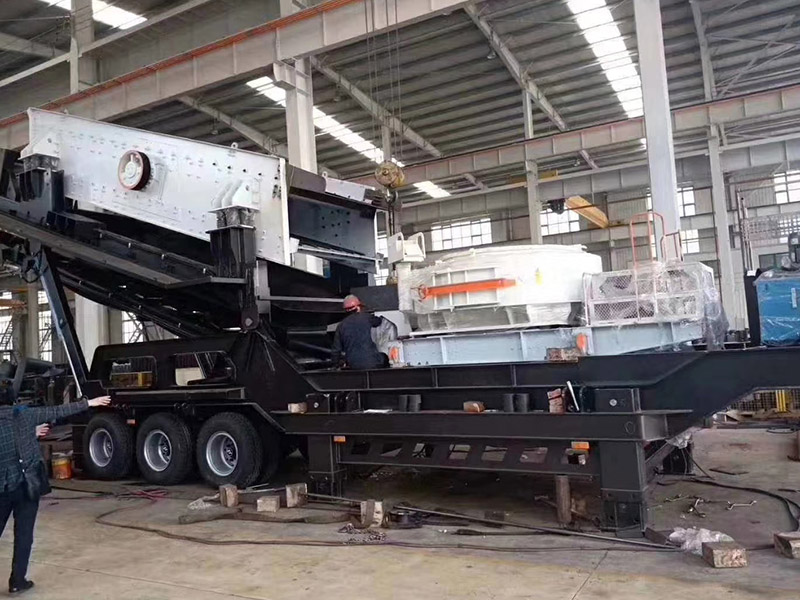

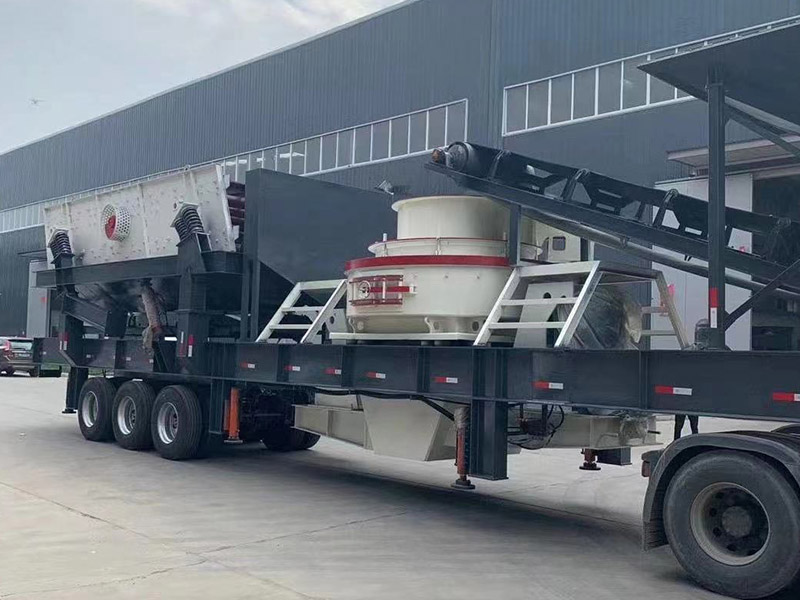

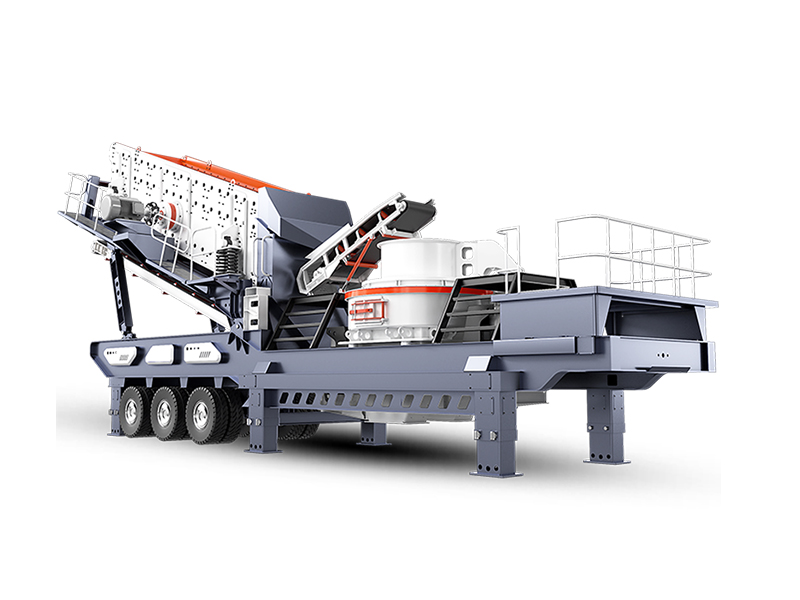

The mobile sand making machine has the advantages of high mobility, rapid installation and production, efficient sand making capacity, energy saving and environmental protection, intelligent control, and strong adaptability. These advantages make mobile sand making machines widely used in many fields, providing strong support for the construction of buildings, highways, railways, and other projects Mobile sand making machine is a kind of mobile crushing equipment integrating crushing, sand making, screening and conveying. It adopts vehicle-mounted chassis (tires or tracks) and can be driven directly to the work site to process large stones into machine-made sand (0-5mm) that meets construction standards.
Applicable stone types
Mobile sand making machine is suitable for processing medium and high hardness stones, such as:
Pebbles, river pebbles (rounded particles, need VS impact crushing)
Granite, basalt (high hardness, need cone crusher + sand making machine combination)
Limestone, construction waste (medium hardness, can be crushed by impact or impact)
Tailings, coal gangue (environmentally friendly recycling)
Advantages and Features
Flexible transfer: no fixed infrastructure is required, and the crawler/tire design is suitable for complex terrains such as mines and construction waste dumps.
Sand and gravel are produced at the same time: a single machine can simultaneously produce 0-5mm sand and 5-10mm gravel, reducing equipment investment.
Grain shape optimization: VSI sand making machine has good roundness and excellent grading of finished sand, which can replace natural sand.
Environmental protection and energy saving: closed design + pulse dust removal, low noise and dust pollution.
Intelligent control: PLC system adjusts parameters in real time, with low failure rate.
Working Principle

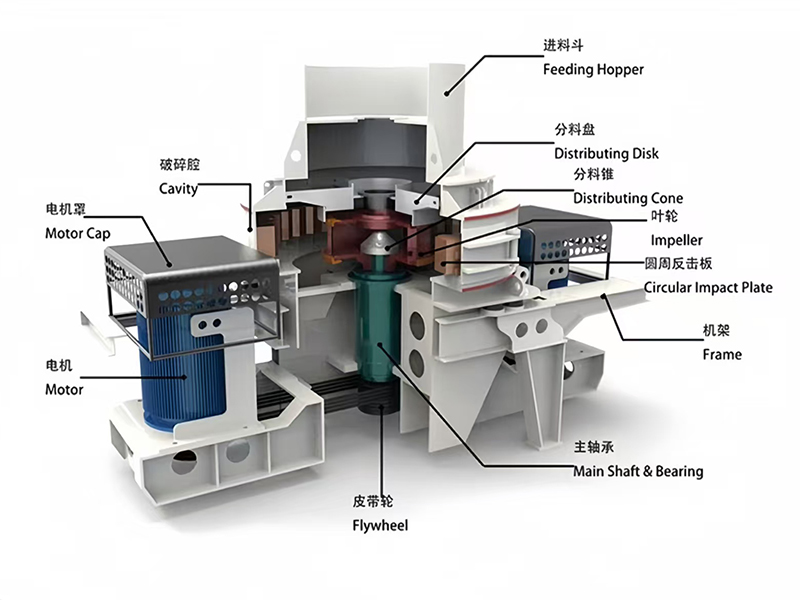

The mobile sand making machine first sends the raw materials into the crushing chamber through the feeding device. In the crushing chamber, the materials are initially crushed into smaller particles.
Subsequently, the crushed material enters the grinding chamber. Under the action of the high-speed rotating grinding body, the material is further impacted and ground, making its particle size smaller.
The ground material then enters the screening device. The screening device classifies the materials and collects sand and gravel of different sizes respectively. By adjusting the aperture of the screen, the particle size of the sand and gravel can be controlled to meet the needs of different construction projects.
During the entire working process, the driving device of the mobile sand making machine plays a key role. It provides power so that components such as crushing, grinding, and screening can operate efficiently and stably. At the same time, the mobile sand making machine is also equipped with an advanced control system, which can monitor the operating status of the equipment in real-time and make adjustments as needed to ensure the smooth progress of the production process.
Technical Parameters
Standard model
Supporting equipment
Supporting equipment
External dimension (mm)
model
Feed size (mm)
Processing capacity (T / h)
S‑V7611
3YZK1548
VSI7611
35
120‑180
12500 x 2600 x 4300
S‑V8518
3YZK1848
VSI8518
40
200‑260
14200 x 3000 x 4500
S‑V9526
3YZK1860
VSI9526
45
300‑380
14500 x 3000 x 4500
S‑V1140
3YZK2160
5X1140
50
450‑520
15500 x 3100 x 4500
S‑5V7615
3YZK1548
5X7615
35
150‑280
12500 x 2600 x 4300
S‑5V8522
3YZK1848
5X8522
40
240‑380
14200 x 3000 x 4500
S‑5V9532
3YZK1860
5X9532
45
350‑540
14500 x 3000 x 4500
S‑5V1145
3YZK2160
5X1145
50
500‑640
15500 x 3100 x 4500
Any change of technical data will not be advised separately.
