Applicable Materials:Suitable for crushing various ores and rocks with medium to high hardness, such as pebbles, granite, basalt, iron ore, limestone, quartz, diabase, iron ore, gold ore, copper ore, etc.

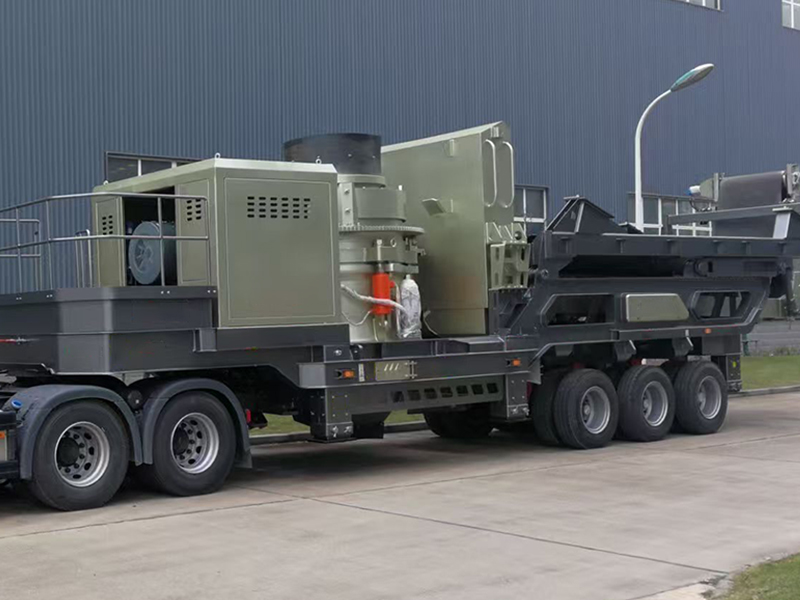

Mobile cone crusher: integrated crawler/tire chassis, flexible transfer, suitable for short-term projects, scattered mining sites, or construction waste recycling, reducing material transportation costs, but the investment is higher.

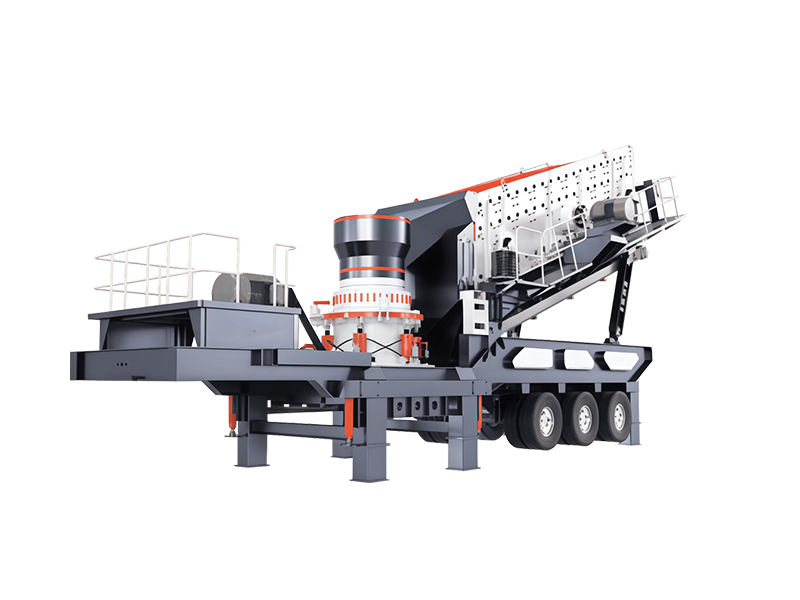

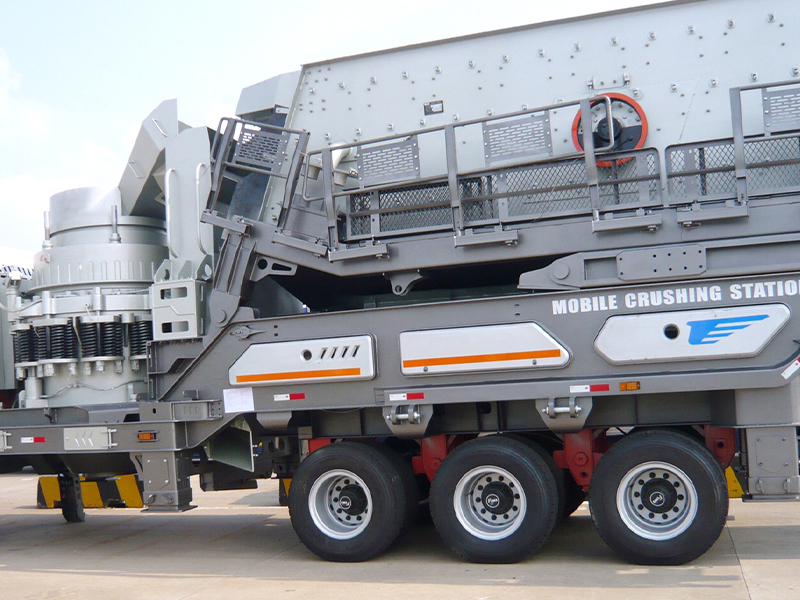

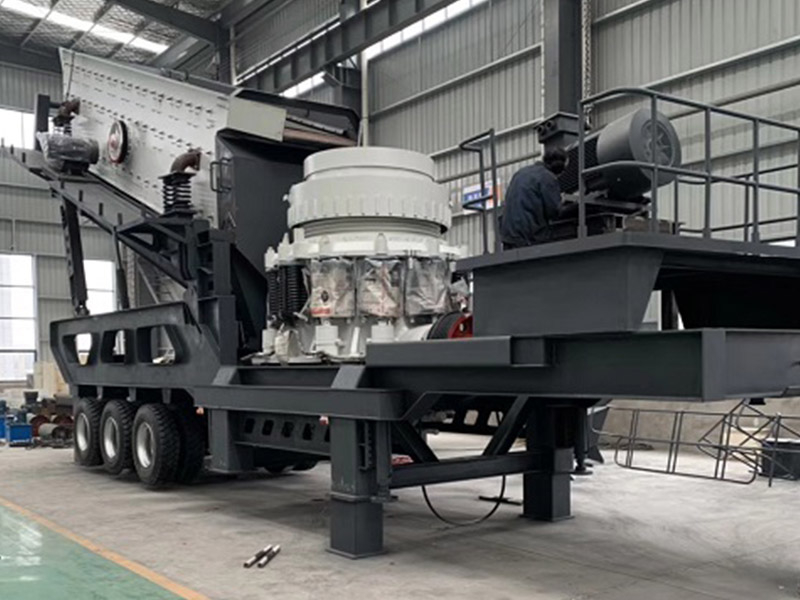

Mobile Cone Crusher: A modular crushing plant integrating high-performance cone crusher and self-propelled chassis (tracked/wheeled). Designed for medium-to-hard materials crushing without fixed installation, it achieves rapid deployment and 30% lower operational costs through intelligent control, fuel efficiency, and portable flexibility.
Advantages and Features
On-Site Mobility: Ready to crush within hours - no foundation required.
Versatile Applications: Ideal for mining, aggregate production, and construction waste recycling.
The finished product has a better particle shape (a high proportion of cubic particles and fewer needle-shaped particles).
Compared with the impact crusher, the life of wear-resistant parts is increased by more than 50% (reduced metal wear).
Working Principle
The mobile cone crushing plant is mainly composed of core modules such as cone crusher mainframe, mobile chassis (crawler/tire), feeding system, discharging system, hydraulic system, and electronic control system:

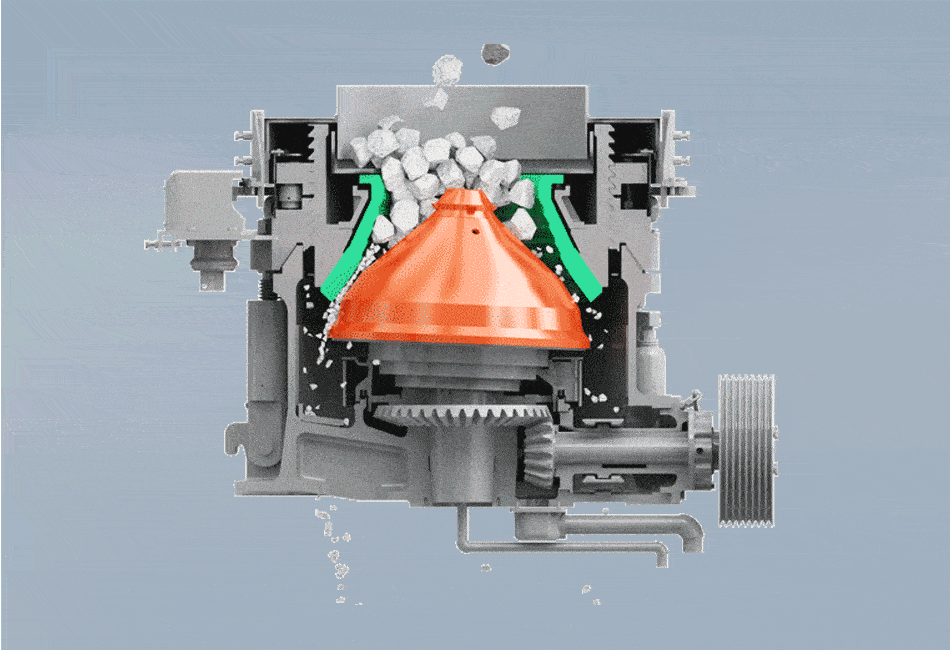

Working Principle (Laminated Crushing)
Feeding stage: The material enters the crushing chamber evenly through the vibrating feeder to avoid overload or idling.
Crushing stage: The moving cone rotates eccentrically to form a periodically changing crushing chamber with the fixed cone; the material is subjected to multiple extrusions, shearing, and grinding in the chamber (laminated crushing principle) rather than a single impact.
Discharge stage: The crushed material is discharged by its own weight or vibrating discharge belt, and the particle size is determined by the discharge port size and the crushing chamber type.
Technical Parameters
Spring Cone Crusher Model
S-CS75
S-CS110
S-CS160
S-CS220
Capacity
59-163T/H
100-200T/H
132-253T/H
215-330T/H
Feeding Size
159mm
156mm
4188mm
188mm
Motor Power
75KW
110KW
160KW
220KW
Cs Cone Crusher Model
S-H420
S-H430
S-H440
——
Capacity
85-170T/H
120-345T/H
255-605T/H
——
Feeding Size
240mm
360mm
450mm
——
Motor Power
90KW
160KW
250KW
——
HPT Cone Crusher Model
S-HP100
S-HP200
S-HP300
——
Capacity
45-140T/H
90-250T/H
115-440T/H
——
Feeding Size
175mm
235mm
265mm
——
Motor Power
100KW
160KW
220KW
——
Any change of technical data will not be advised separately.
