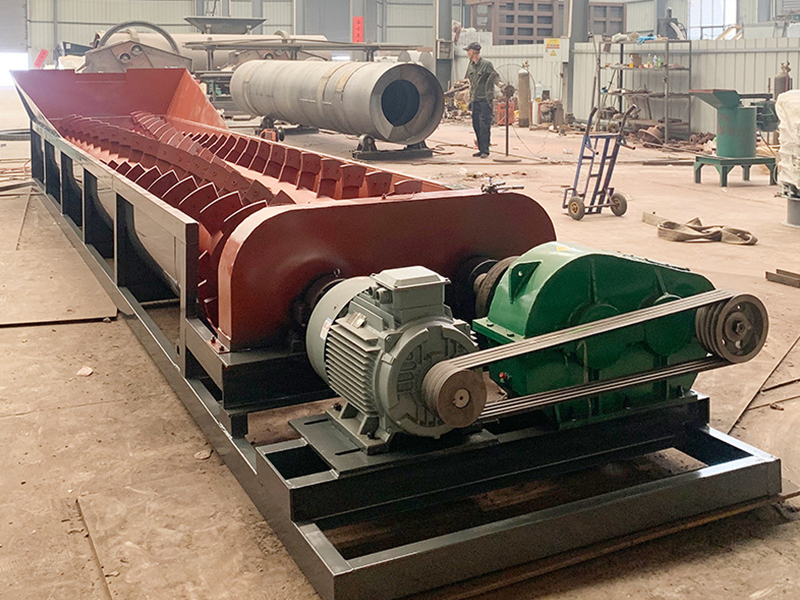

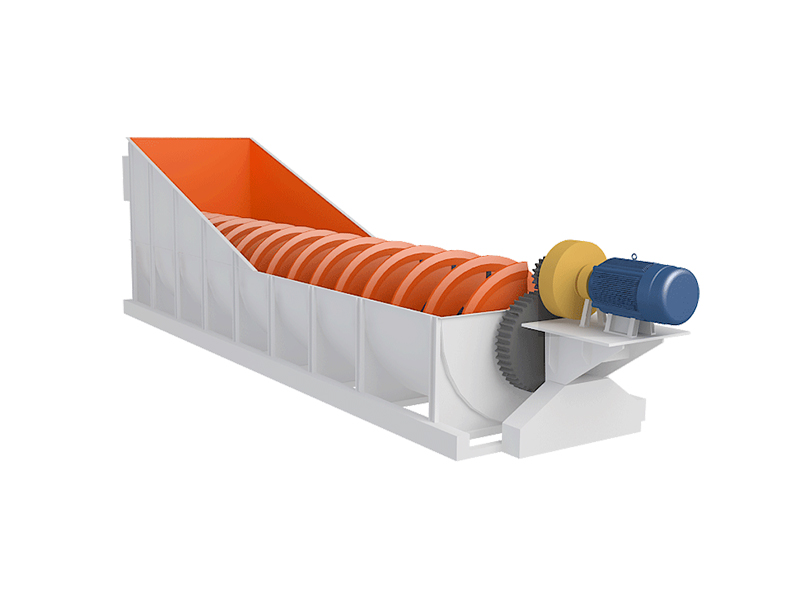

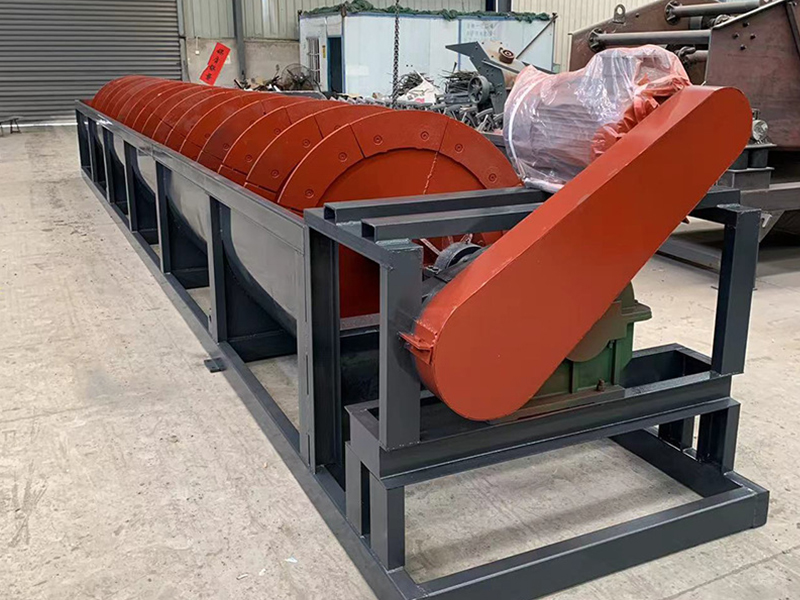

Spiral sand washing machine is a kind of efficient sand washing equipment, which is mainly used to clean and separate impurities such as stone powder and soil in sand and gravel.
The spiral sand washer is suitable for washing, grading, and dewatering operations in industries such as metallurgy, building materials, and hydropower. It is used for the washing of fine and coarse-grained materials, particularly suitable for building sand and road construction sand and gravel. The spiral sand washer has low power consumption, high washing efficiency, and excellent cleaning and dewatering effects.
It features a well-sealed structure, with a fully enclosed transmission device and adjustable weir plate, ensuring high efficiency, durability, effective cleaning, dewatering, and stable fine product output.
Advantages and Features
High Efficiency and Durability: The equipment is energy-efficient and wear-resistant. The spiral blades are equipped with wear-resistant edges to prevent abrasion from stirring.
Reasonable Design:The bearing in the water tank area is internally installed, with the drainage device located at the bottom. Multiple rubber seals are used in rotating parts, effectively reducing the failure
Convenient Installation: Installation layout plans can be designed according to the actual site conditions provided by the customer.
Working Principle
The spiral sand washing machine is driven by a motor, and the impeller rotates slowly through the transmission of components such as a V-belt and a reducer. The material (such as sand, stone, ore,etc.) enters the washing tank from the feed tank and is rolled and stirred under the drive of the impeller to remove impurities covering the surface of the material.
The material is rolled and stirred in the washing tank under the drive of the impeller.
During this process, collisions and frictions will occur between the materials and between the materials and the impeller and the casing, which will help remove impurities such as soil and stone powder on the surface of the materials.
Impurities and foreign matter with a smaller specific gravity will be carried away with the water flow and discharged from the drain of the washing tank.
Technical Parameters
Model
Screw diameter (mm)
Tank length (mm)
Feed size (mm)
Screw speed (R/min)
Production capacity (T/h)
Power (kw)
Water consumption (T/h)
Overall dimension (mm)
XL515
515
7615
≤10
38
5‑15
5.5
6‑60
8100×2345×1450
XL765
765
7620
≤10
26
20‑60
11
9‑63
8545×2650×1870
XL920
920
7585
≤10
100
40‑110
11
10‑80
8500×2100×3600

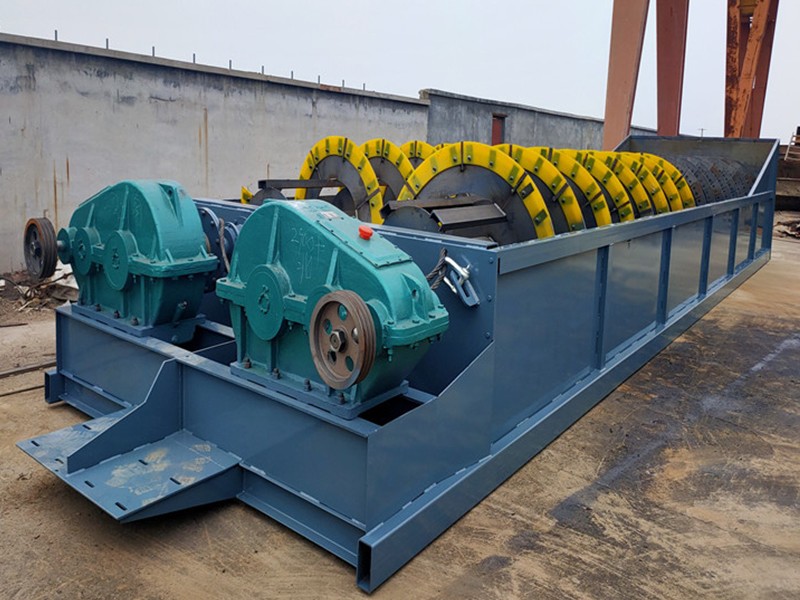

2XL920
920
7585
≤10
200
80‑220
2×11
20‑160
8420×3760×3960
XL1120
1120
9750
≤10
175
50‑130
18.5
20‑150
1078×3980×4170
2XL1120
1120
9750
≤10
350
100‑260
2×18.5
40‑300
1097×5250×4720
Any change of technical data will not be advised separately.
