Applicable Materials: Crawler screening stations can screen and grade various loose minerals and rocks, such as diabase, andesite, ore tailings, limestone, granite, basalt, etc. At the same time, it can also screen construction waste, separate reusable materials, and realize the recycling of resources.

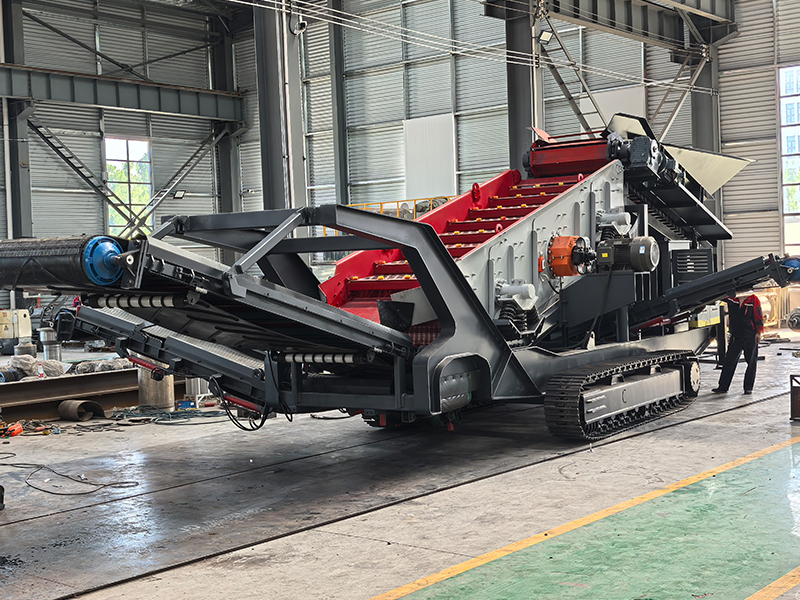

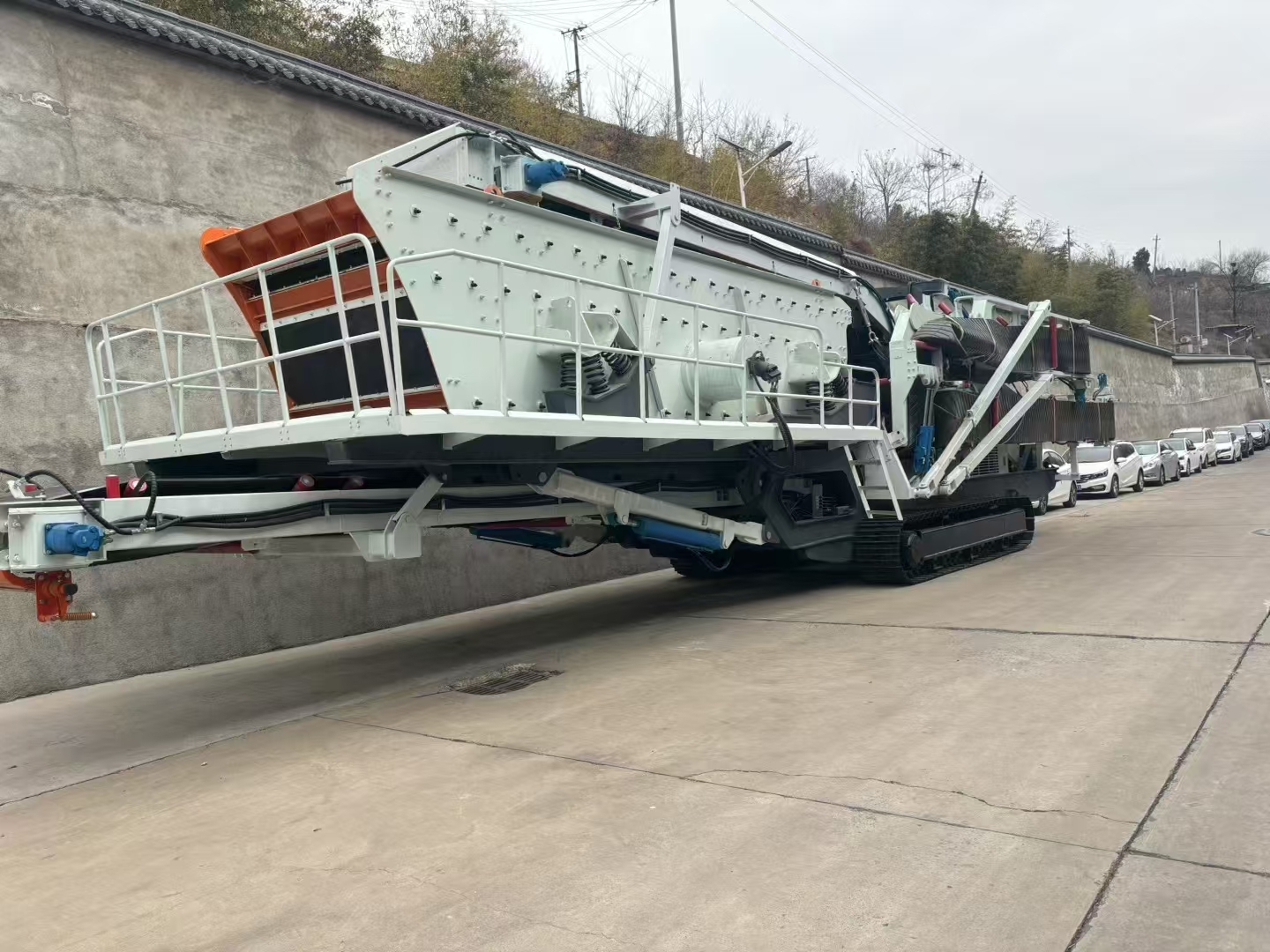

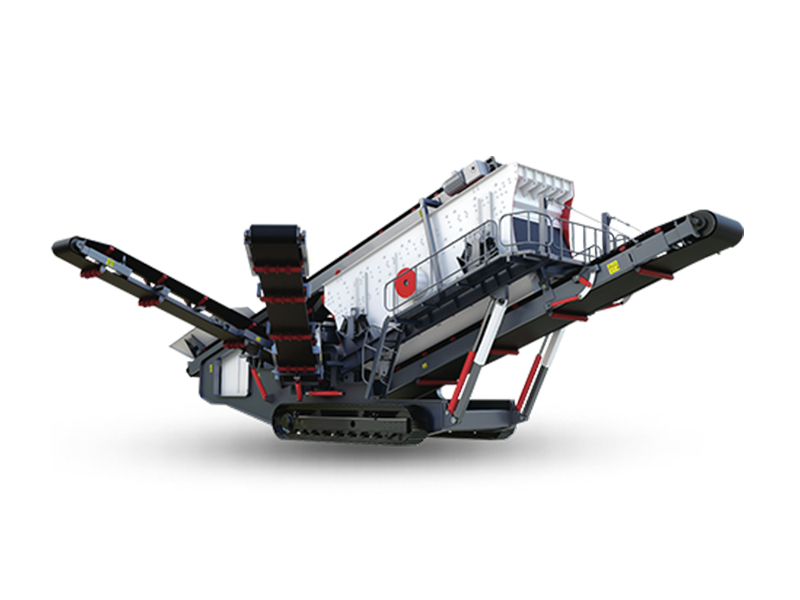

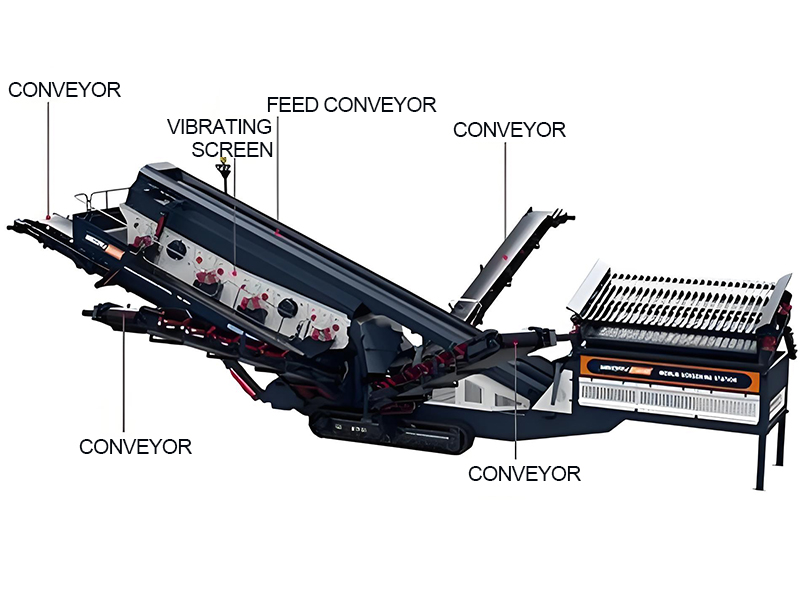

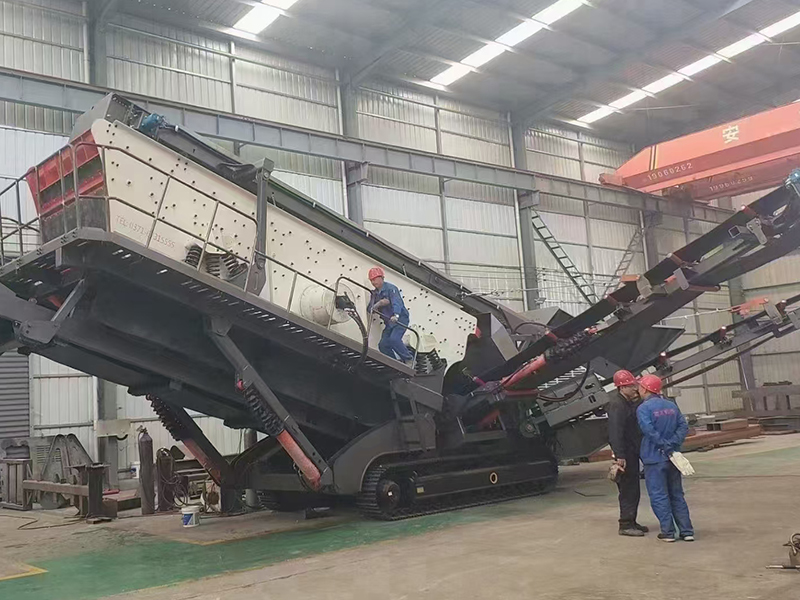

The Track-mounted Mobile Vibrating Screen adopts self-driving mode, with advanced technology and complete functions. It is mainly composed of a power system, mobile crushing and screening system (including primary crushing station and secondary crushing and screening station), conveyor, etc. Each level of the crushing station is an independent working unit, which can complete its different responsibilities.
Track-mounted Mobile Vibrating Screen are widely used in quarries, mines, construction demolition debris processing, surface soil processing, material recycling, gravel screening, coal and aggregate screening. etc. At the same time, it can also be used for the classification of materials in industries such as mineral processing, power, and chemical industry.
Advantages and Features
large torque traveling motor large torque traveling motor has mature technology, large driving force and high reliability
the well configured and easy to repair control panel can effectively reduce the equipment maintenance time.
the system has strong flexibility and high production efficiency. It is a universal body and model, and the feeding unit exchange system and screening unit exchange system
process conversion is convenient to meet different needs. Customers can choose "screening before crushing" or "crushing before screening" to meet product requirements
Working Principle
The Track-mounted Mobile Vibrating Screen is driven by its own power system to crush and screen the materials on site. During the screening process, the materials roll continuously in an elliptical shape on the vibrating screen. Through continuous flipping and loosening, the fine particles have the opportunity to move to the bottom of the material layer and be discharged through the screen holes, while the materials with a particle size larger than the screen holes can jump out of the screen and enter the finished material conveyor.
Technical Parameters
Model
TF1860
TF2160
Vibrating Screen
Model
1800*6000 three story
2100*6000 three story
Feeding Size
≤200mm
≤200mm
Capacity
65‑586t/h
81‑720t/h
Power
22KW
30KW
Feeding belt conveyor
Model
B1000*8.5m
B1000*8.5m
Power System
154KW
154KW
Any change of technical data will not be advised separately.
