Applicable Materials:Suitable for crushing various ores and rocks with medium to high hardness, such as pebbles, granite, basalt, iron ore, limestone, quartz, diabase, iron ore, gold ore, copper ore, etc.

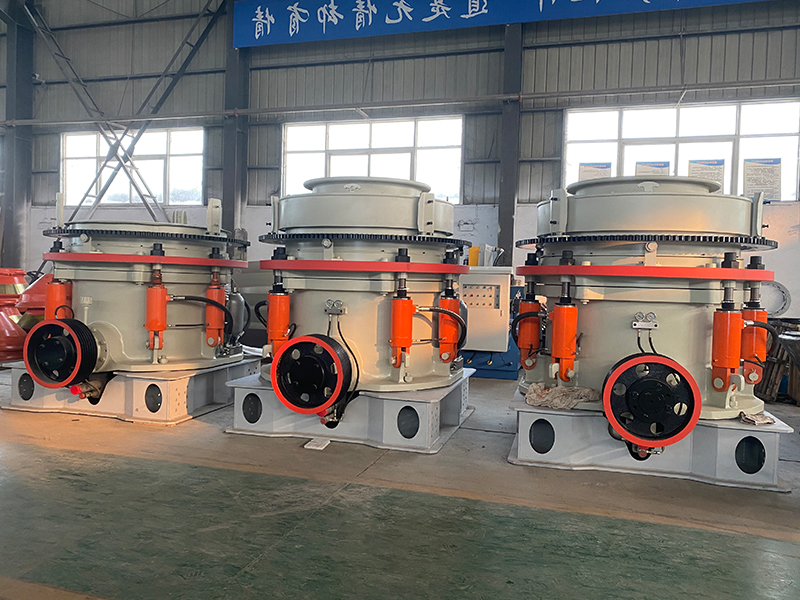

The Hydraulic Cone Crusher is commonly used for processing hard stones and ores in medium to large-scale production operations. It is available in single-cylinder and multi-cylinder versions, typically used as a secondary or tertiary crusher in a crushing circuit following a jaw crusher. Featuring a unique structure and high processing capacity, it is designed with an overload protection system to allow foreign objects to pass through the crushing chamber without causing damage to the machine. Sealing options include dry oil or water to ensure reliable production.
Advantages and Features
Hydraulic Overload Protection: Foreign objects are automatically passed through the chamber to avoid damage to the machine.
Hydraulic Locking and Insurance Mechanisms:Enhances performance with improved operation ease.
High Crushing Efficiency: Adjustable particle size, reliable performance, and convenient maintenance.
High-Quality Spare Parts: Long service life with a comprehensive after-sales service system.
Working Principle

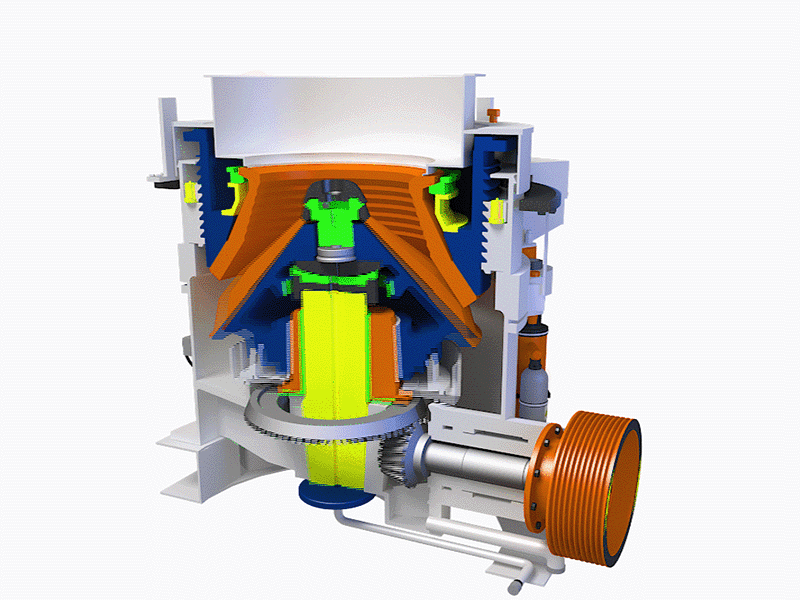

The motor drives the horizontal shaft to rotate, and the horizontal shaft is directly transmitted to the gear. The gear drives the eccentric bushing to rotate around the main shaft, and the eccentric bushing drives the moving cone to swing and rotate. The copper bushings inlaid between the main shaft and the eccentric bushing, and between the eccentric bushing and the moving cone act as bearings. Adjust the size of the discharge opening by rotating the fixed cone. The 6 hydraulic cylinders outside the main engine pull the fixed cone to protect the overload and clear the cavity. The whole set of crusher is composed of host machine, lubrication system and electric control system.
Technical Parameters
Model
Cavity type
Standard‑Feeder Opening Size(mm)
Standard‑Outlet Setting Size(mm)
Shorthead‑Feeder Opening Size(mm)
Shorthead‑Outlet Setting Size(mm)
Power(kw)
Capacity(t/h)
HP200
超粗(BC)
160
90‑250
粗(C)
185
19
76
10
中(M)
125
17
54
6
细(F)
95
13
23
6
超细(EF)
10
5
HP300
超粗(BC)
230
25
220
115‑440
粗(C)
210
20
75
10
中(M)
150
15
50
8
细(F)
105
10
20
6
超细(EF)
20
6
HP400
超粗(BC)
295
30
315
140‑630
粗(C)
250
25
90
10
中(M)
195
20
50
8
细(F)
110
14
40
6
超细(EF)
30
6
HP500
超粗(BC)
330
30
400
175‑790
粗(C)
285
25
90
13
中(M)
200
20
55
10
细(F)
133
16
40
8
超细(EF)
35
6
HP800
超粗(BC)
353
32
630
260‑1200
粗(C)
297
32
155
13
中(M)
267
25
92
10
细(F)
219
16
33
6
超细(EF)
Any change of technical data will not be advised separately.
