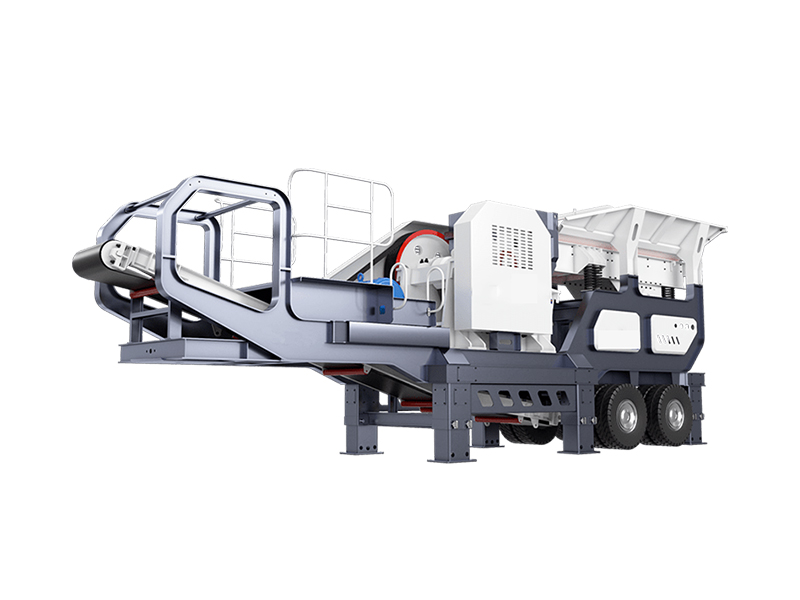

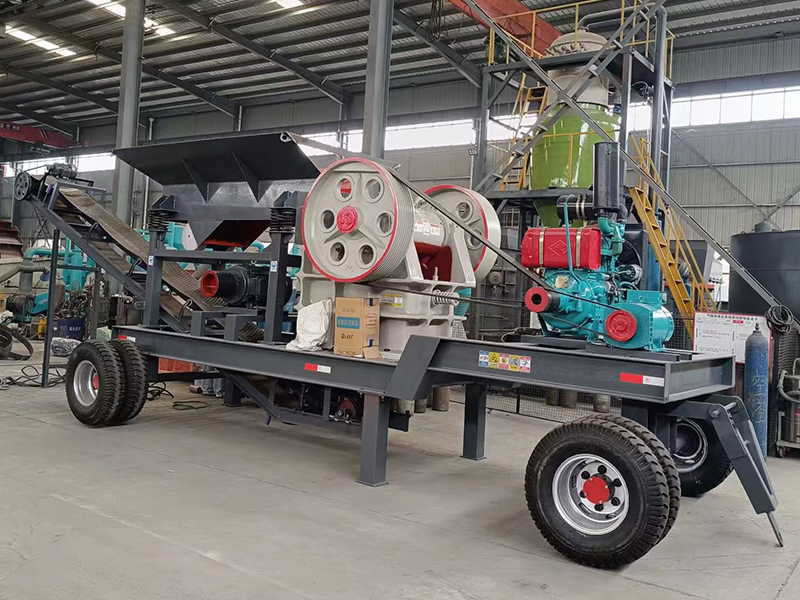

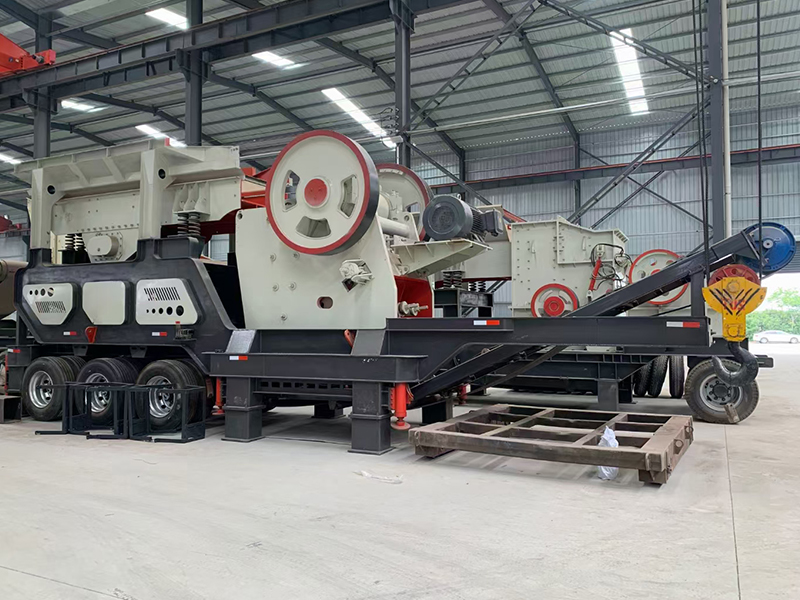

Mobile Jaw Crusher

Processing Capacity: 30-800t/h
Motor Power: 100-500kw
Feeding Size:≤800mm
Applicable Materials:Pebbles, basalt, granite, iron ore, copper ore, quartz, diabase, and other medium to hard materials.

chinahbrcrusher@gmail.com

Introduction
Advantages and Features
Working Principle
Technical Parameters

Introduction

The mobile jaw crushing station has become one of the important pieces of equipment in the current field of rock crushing due to its high flexibility, integrated design, high efficiency and output, strong adaptability, environmental protection and energy saving, and reduced operating costs. Mobile jaw crusher plant is a mobile crushing equipment that integrates feeding, crushing, screening and conveying. It uses jaw crusher as the core crushing device and is suitable for coarse crushing of various medium-hard and high-hardness materials.

Advantages and Features

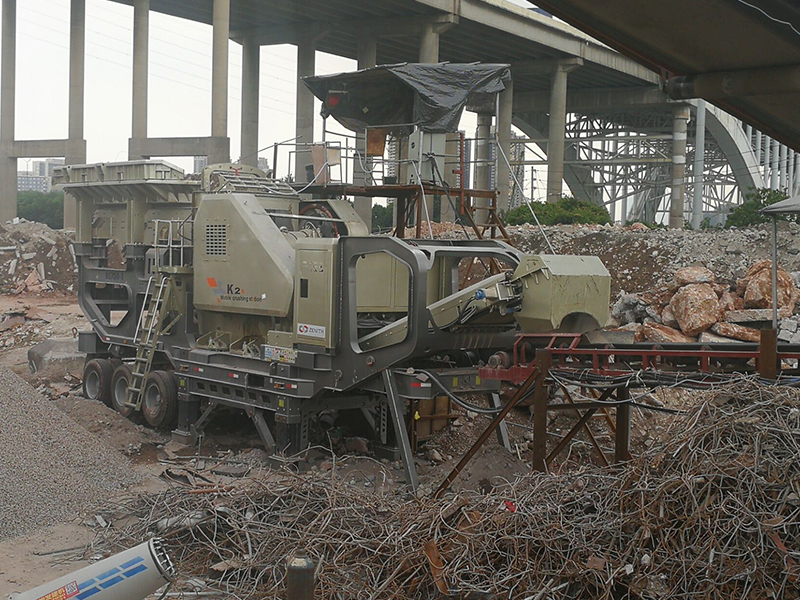

Strong mobility: crawler or tire drive, can quickly transfer, adapt to various working environments such as mines, construction waste, quarries, etc.
Integrated design: reduce material transportation costs and complete crushing and screening directly on site.
Controllable: PLC automation system, easy to operate, and reduce labor costs.
Environmental protection and energy saving: optional diesel/electric dual power to reduce dust and noise pollution.

Working Principle

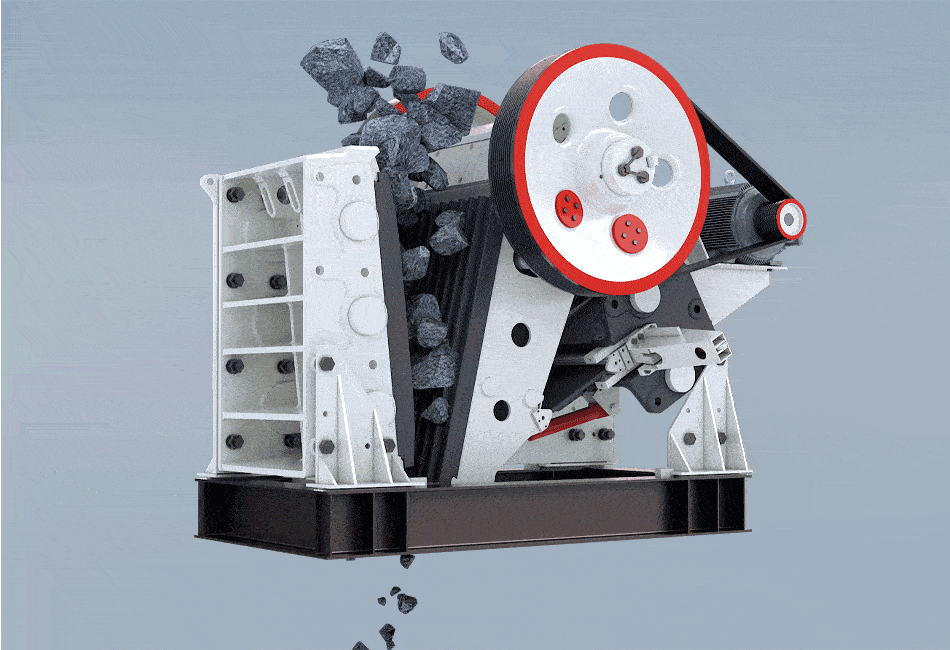

The modular mobile jaw crusher is equipped with high-strength alloy jaw plate (hydraulic adjustment of discharge particle size), pre-screening vibrating feeding system, diesel/electric dual power drive, all-terrain crawler/tire chassis, PL intelligent control system (supports remote monitoring) and environmental protection device (noise ≤75dB+ spray dust reduction). It has the characteristics of efficient crushing, flexible transfer, intelligent operation, etc., and is suitable for processing hard materials such as mines and construction waste.

Workflow

Feeding: excavator feeding → automatic speed regulation of vibrating feeder
Crushing: jaw plate extrusion → adjustable discharge particle size (example: roadbed material 50mm)
Discharging: belt conveyor pile (0-20mm finished product) → direct loading or entering the next process

Technical Parameters

Model	MG938E69	MG1142E710	MG1349E912	MG1349SK87	MG1349SK110
Transportation length (mm)	11900	13100	14600	14600	15400
Transport width (mm)	2550	2550	1950	1550	1950
Transport height (mm)	3650	4450	4500	4500	4500
Maximum length (mm)	12100	13300	14600	14600	15400
Maximum width (mm)	2900	2950	3300	3300	3300
Maximum height (mm)	4060	4810	5300	5300	5700
Weight (t)	39	57	83	65	92
Tire configuration	tandem dual-axles	tandem triple-axles	tandem triple-axles	tandem triple-axles	tandem triple-axles
Crusher model	PE600×900	PE750×1060	PE900×1200	SKJ870×1100	SKJ1100×1300
Max feeding size (mm)	480	630	750	720	960
Adjusting range of output size (mm)	65 - 160	80 - 140	95 - 180	85 - 220	120 - 260
Capacity (t/h)	90- 180	110-320	220 - 450	130 -360	260-580
Feeder type	GZD960×3800	GZD1100×4200	GZD1300×4900	GZD1300×4900	GZD1300×4900
Main belt type	B800×8.5M	B1000×9M	B1200×9.5M	B1200×9.5M	B1200×9.5M
Lateral belt type	B450×3M	B500×3.5M	B650×4M	B650×4M	B650×4M
Generator set type (kw)	160	200	220	250	300
Iron remover type	RCMD(C)-8	RCMD(C)-10	RCM(C)-12	RCMD(C)-12	RCMDI(C)-12

Any change of technical data will not be advised separately.
