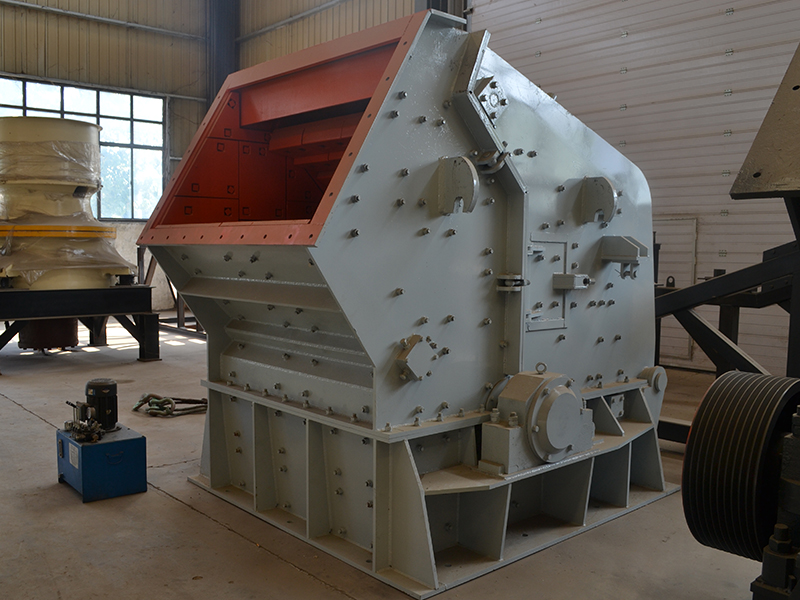

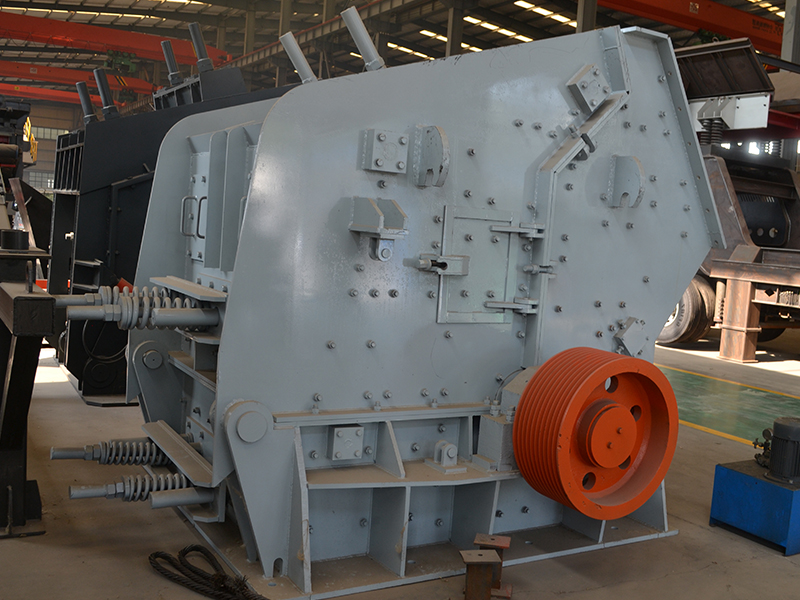

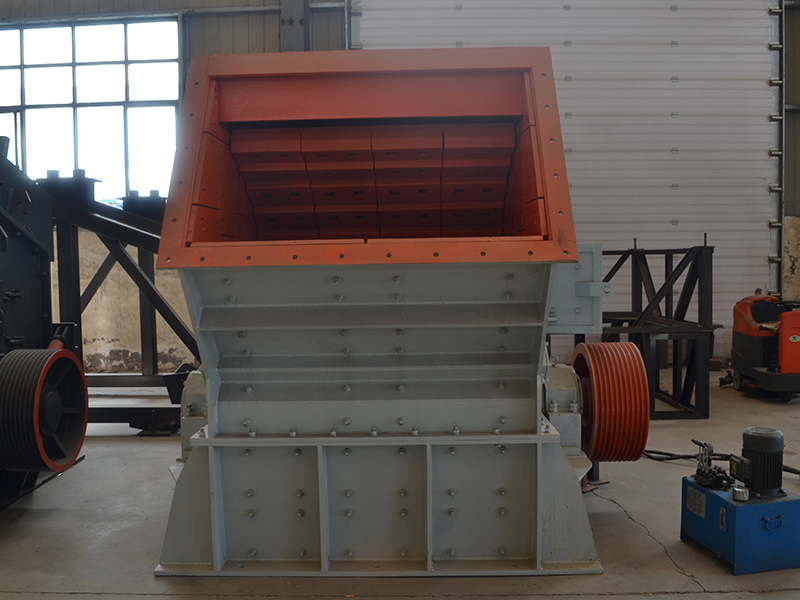

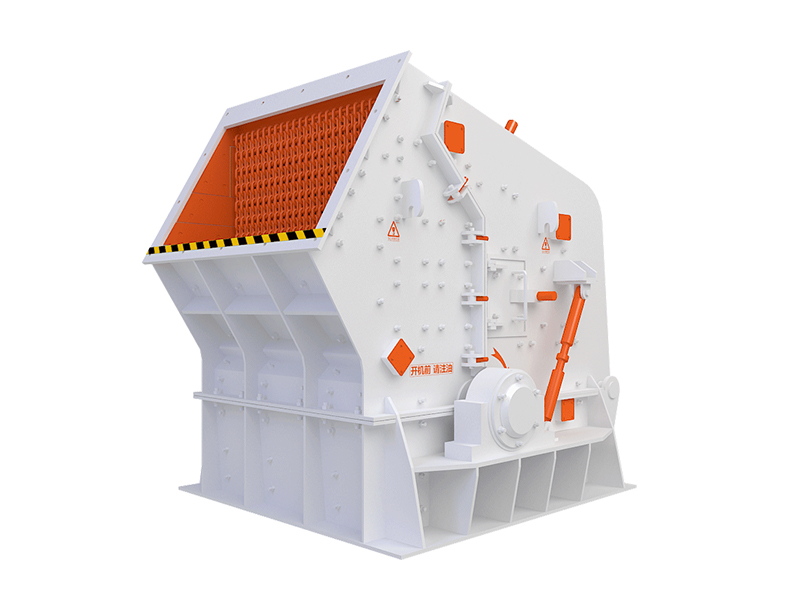

PF series impact crusher is a kind of equipment that uses the high-speed impact principle to crush various medium-hard materials with medium and fine crushing compressive strength not higher than 320Mpa, such as limestone, clinker, slag, coke, coal, etc.
The impact crusher (commonly referred to as the impact breaker) is a new generation of impact crushing machine developed by Yingke Machinery. It incorporates advanced domestic and international technologies and is designed based on the specific requirements of the domestic sand and gravel industry. Typically used as a secondary crushing device, it achieves "more crushing, less grinding". The impact crusher produces well-shaped, cubic finished stones, with adjustable discharge sizes and diverse specifications. It can process various medium-hard and soft materials (such as limestone, coal gangue, concrete, etc.) and is widely used in industries like railways, highways, cement, and chemical engineering.
Advantages and Features
Adjustable Plate Hammer and Discharge Gap:Provides a high crushing ratio and excellent stone shaping effect.

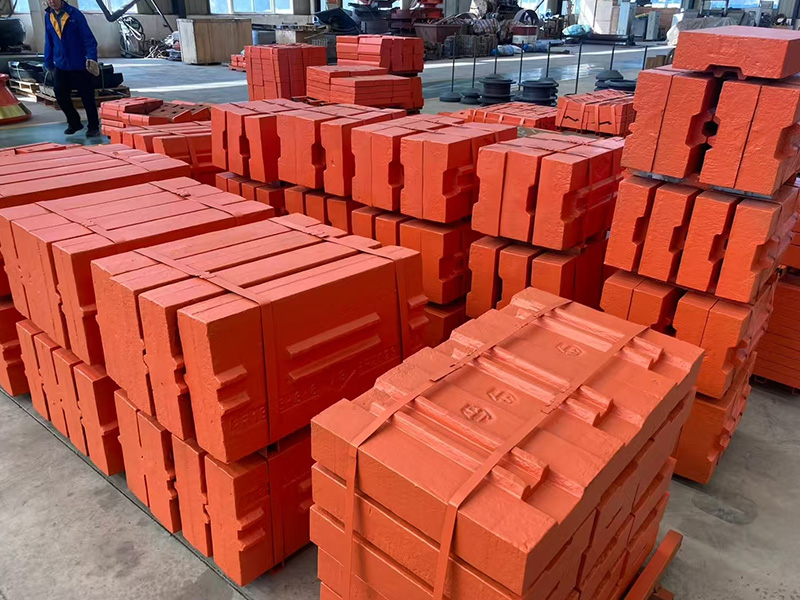

Durable Plate Hammer:Offers good impact resistance and wear resistance, maintaining stable discharge sizes.
New High-Wear Materials:Extends replacement intervals, reduces spare parts inventory, and saves costs.
Multi-Functional Hydraulic System:Allows for high precision and fast adjustment, reduces labor intensity, and shortens downtime.
Working Principle
The working principle of the impact crusher can be summarized as a process of "three-stage crushing and cyclic refinement"：

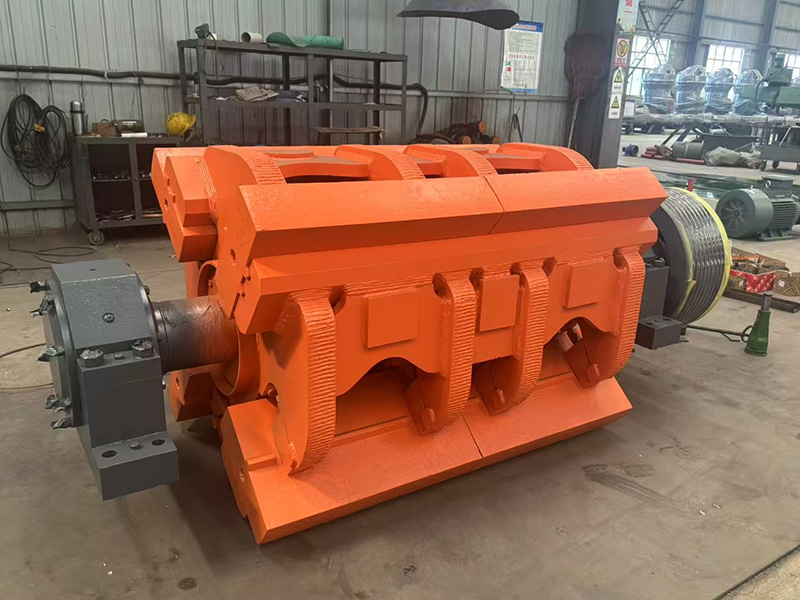

The material first enters the high-speed rotating rotor area and is strongly impacted by the plate hammer at a linear speed of 30-50m/s (primary crushing);

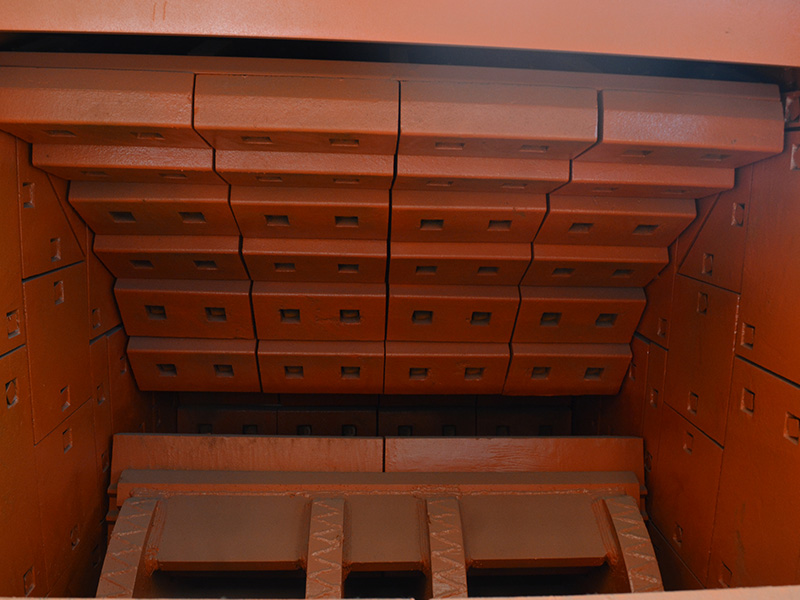

The material is then ejected to the impact plate for collision and crushing (secondary crushing), and at the same time collides with other materials in the chamber to achieve free crushing (third-stage
crushing).
By intelligently adjusting the gap between the impact plates and the rotor speed, the system can accurately control the number of crushing times and residence time of the material in the chamber to ensure that the finished product particle size is uniform and meets the standard, and the particles that do not meet the standard continue to be cyclically crushed until they are discharged.
This multi-stage impact crushing mechanism enables the impact crusher to have the dual advantages of efficient crushing and high-quality particle shape.
Technical Parameters
Model
Rotor Spec(mm)
Feeder Opening Size(mm)
Max. feed size(mm)
Capacity(t/h)
Power(kw)
Weight( Excluding Electric Motor)(t)
PF‑1007
φ1000×700
400×730
300
25‑45
37‑55
9.5
PF‑1010
φ1000×1050
400×1080
350
50‑80
55‑75
12.2
PF‑1210
φ1250×1050
400×1080
350
80‑120
110‑132
14.1
PF‑1214
φ1250×1400
400×1430
350
100‑160
132‑160
16.8
PF‑1315
φ1320×1500
860×1520
350
150‑220
200‑250
21
PF‑1415
φ1450×1500
900×1650
350
200‑260
250‑280
24
PF‑1515
φ1550×1500
900×1650
350
200‑350
280‑315
27
PF‑1520
φ1500×2000
695×2030
350
250‑400
355‑400
36
Model
Max. Feeding Size(mm)
Capacity(t/h)
Power(kw)
PFW1313
600
200‑380
200
PFW1315
600
250‑500
250
PFW1520
800
380‑800
2×(200‑250)
PFW1620
800
500‑1000
2×(200‑250)
PFW2023
1000
800‑1600
2×500
Any change of technical data will not be advised separately.
