Introduction

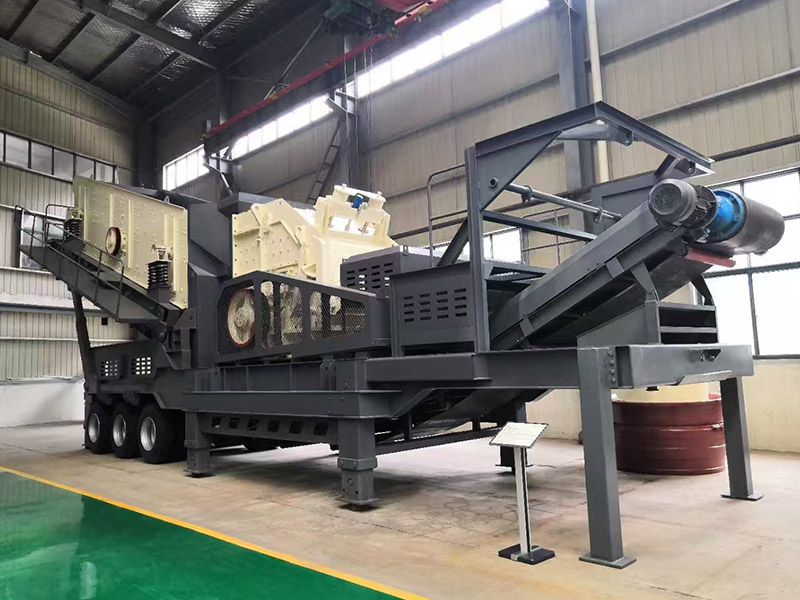

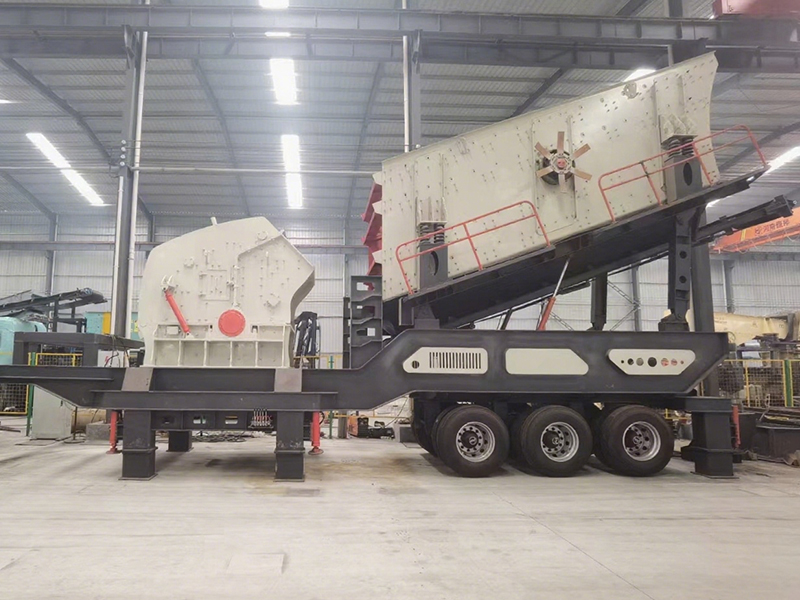

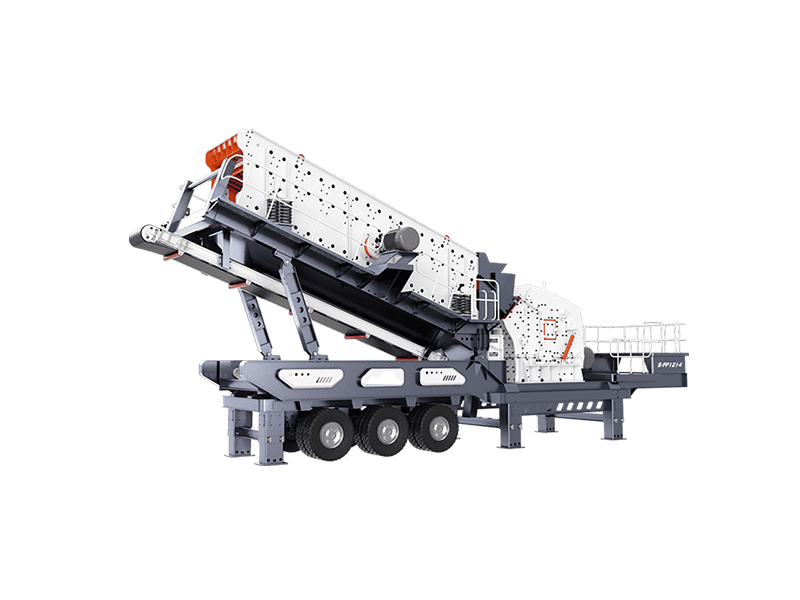

Mobile impact crusher is a mobile crushing equipment with an impact crusher as the main machine. It integrates multiple pieces of equipment to form a mobile crushing production line. This equipment can be flexibly moved and adjusted according to the change of production site. It is suitable for a variety of material processing scenarios that require mobile crushing. The mobile impact crushing plant has broad application prospects in the field of crushing operations due to its high flexibility, efficient crushing capacity, wide adaptability, cost saving, environmental protection performance, and easy operation. Modular crushing equipment that integrates an impact crusher, feeding system, screening module, and mobile chassis (tire/track), which can be flexibly transferred by traction or self-drive to achieve on-site medium and fine crushing of materials. Applicable stone type selection Medium and low hardness stone: Mohs hardness ≤ 6, typical materials include limestone, dolomite, coal gangue, etc. Reason: high impact crushing efficiency, controllable hammer wear Building recycled materials: typical materials, concrete, bricks, asphalt blocks, etc. Reason: three-dimensional particle shape after multi-stage crushing, suitable for recycled aggregate Medium hardness abrasive weak stone: Mohs hardness 6-7, typical material granite (need to reduce feed size) Reason: a wear-resistant hammer is required, and the economy is better than cone crusher. Not recommended scenario: Ultra-high hardness stone (basalt, quartzite>7)-the hammer wears too fast; it is recommended to use a mobile cone crusher instead. Viscous/high humidity materials- easy to block the counterattack chamber.

Advantages and Features

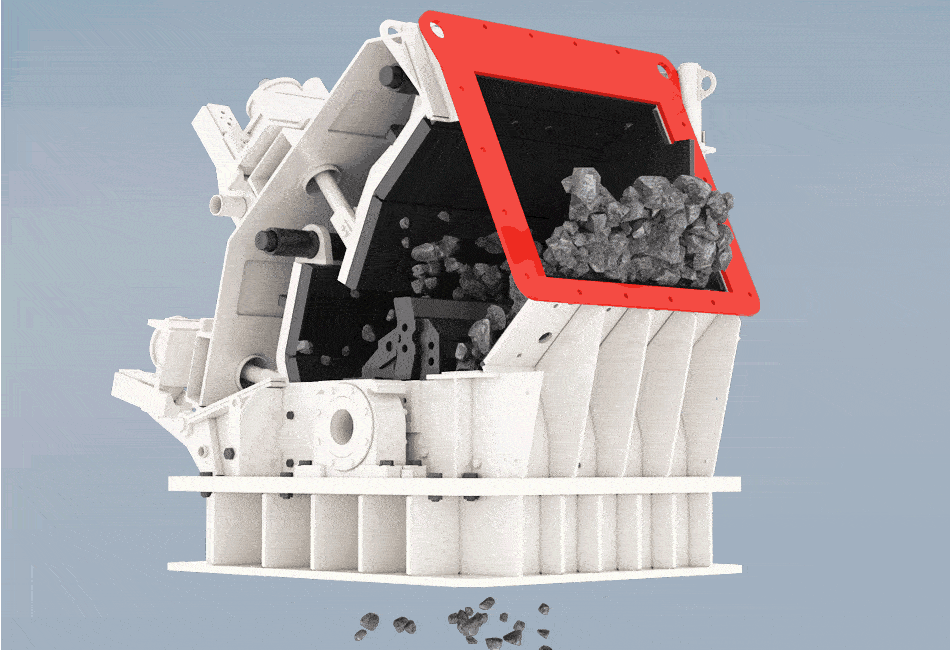

• Crushing principle: The material is crushed by the impact collision between the high-speed rotating rotor and the impact plate (dynamic crushing force).

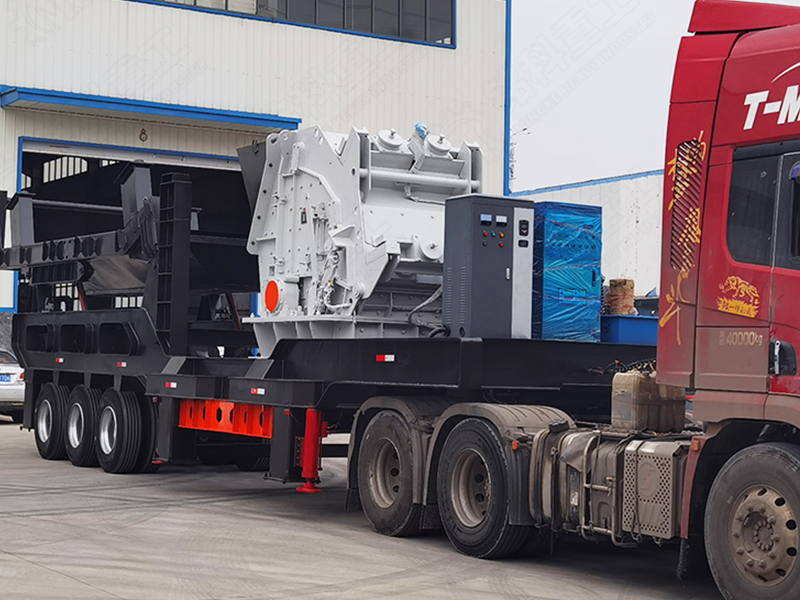

• Mobility: No fixed foundation is required, and it can be put into production within 1 hour.
• Modular design: Optional pre-screening, iron remover, dust removal device, etc.

Working Principle

Technical Parameters
